KnitFeed

Next Generation Precision
Yarn Length Meter.

Ensure absolute fabric consistency and optimize yarn usage with ultra high precision, smart networking, and multi parameter fabric storage.

KnitFeed PDF
KnitFeed Demo

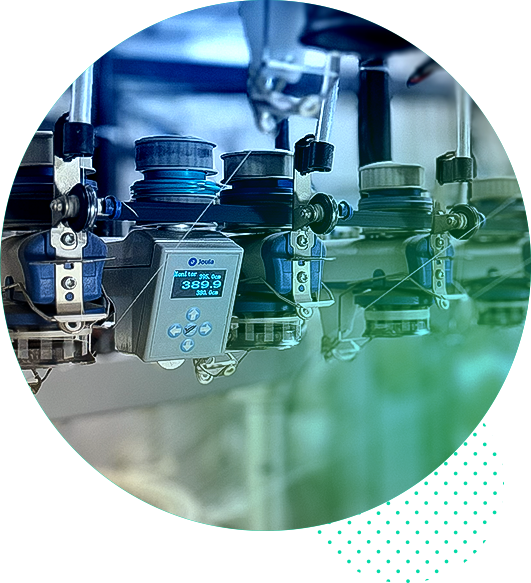

KnitFeed Value Proposition

By accurately measuring yarn consumption and stitch length, Joula KnitFeed ensures fast, precise, and cost-effective fabric reproduction.

Features and Facilities

Ultra High Precision

Ultra High Precision (0.01 cm Accuracy)

Ensures exact yarn length measurement per revolution without multi circle accumulation errors.

Uniform Yarn Feeding

Uniform Yarn Feeding & Deviation Response

Maintains uniform yarn feeding across all feed positions to ensure consistent stitch length and instant detection of yarn fluctuations.

Fast Fabric Reproduction

Fast Fabric Reproduction & 40 Fabric Memory

Built in memory stores up to 40 fabric profiles to quickly reproduce identical fabric styles across different machines and reduce setup time.

KnitFeed Illustration
Simplified Yarn Analysis

Simplified Yarn Analysis & OLED Display

Dot matrix OLED screen provides clear multi language parameter display and simplifies yarn consumption calculations.

CAN Network

CAN Network & PC Integration

Built in CAN communication port enables real time central monitoring and remote parameter management via PC software.

KnitNet Sync

Seamless KnitNet Ecosystem Sync

Fully integrates with Joula KnitNet to generate detailed yarn consumption and course length reports per roll, shift, and machine.

Why Precision Matters

Inconsistent yarn length leads to uneven fabric weights and costly material wastewaste. KnitFeed eliminates these issues with an incredible 0.01 cm measurement accuracy per revolution, ensuring every roll strictly meets exact specifications

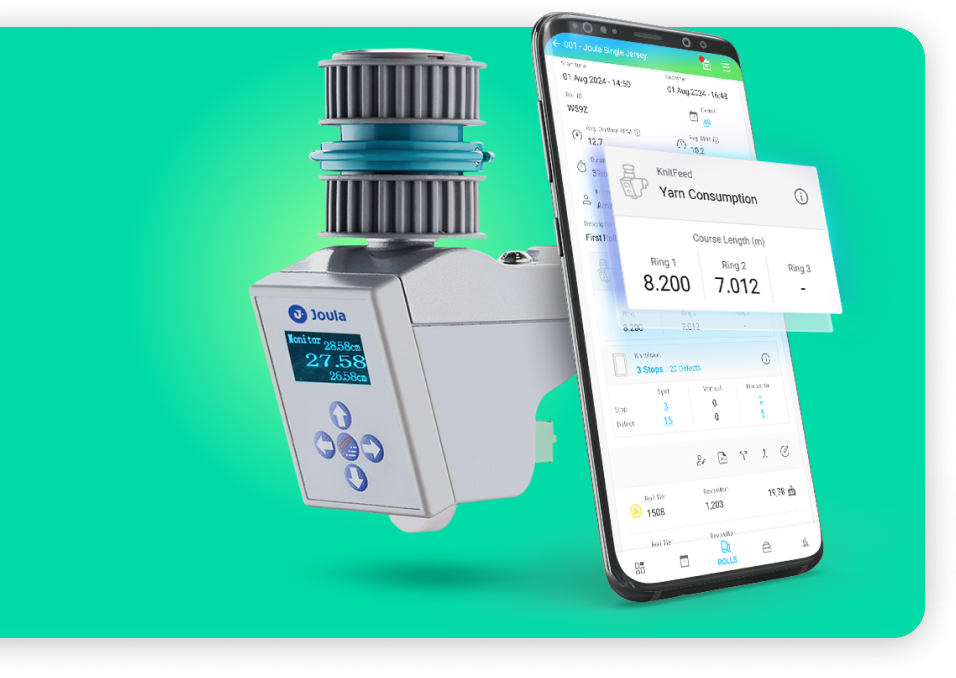

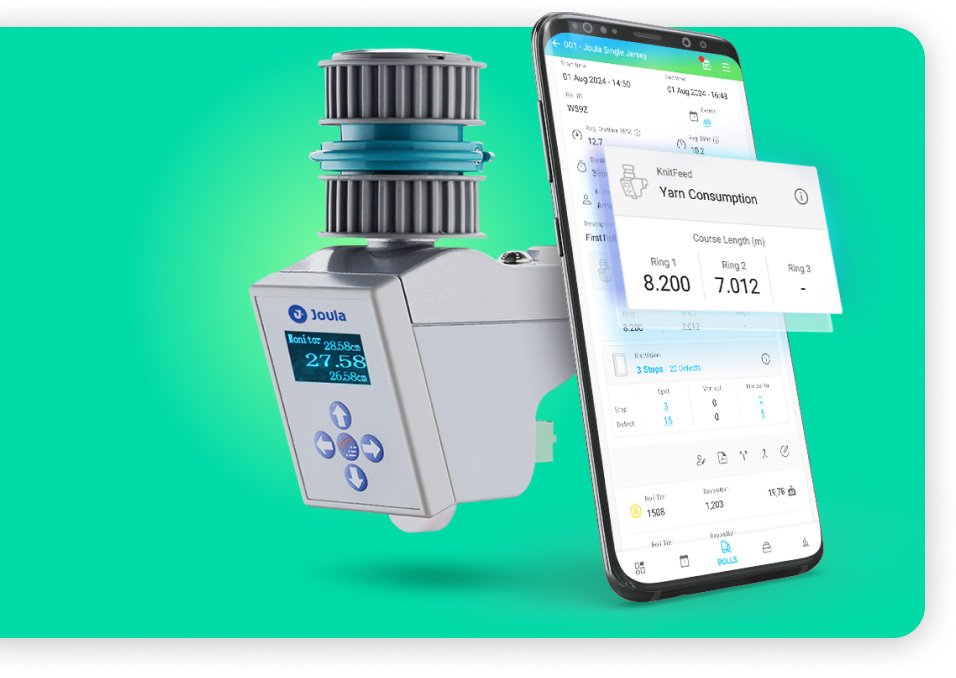

KnitFeed Benefits

Specialized Benefits for Production Managers Customize

  • Calculate yarn consumption percentage without weighing yarn cones.
  • Predict yarn inventory depletion dates.
  • Estimate the number of fabric rolls that can be produced from available yarn inventory.
  • Determine the required machine revolutions to produce a fabric roll with a specified target weight.
  • Determine fabric diameter without weighing the fabric.
  • Determine fabric length without weighing the fabric.
06

Technical Specifications

Measurement Accuracy 0.01cm per revolution
Display Dot Matrix OLED Screen (Supports multi language interfaces including English)
Storage Capacity Up to 40 complete fabric parameter profiles
Communication Interface Built in CAN Communication Port (125K Baud rate)
Power Supply DC 9V 24V (Ultra low main power consumption <0.6W)
User Interface: Ergonomic 5 direction keypad for quick navigation and setup
Weight and Dimension 420g / 137mm x 133mm
